HUUM Sauna Heater Package HIVE 15STUX Pkg
The HUUM HIVE series 15STUX Pkg 15.0kW sauna heater package is your gateway to transforming your sauna space into a sanctuary of elegance and performance. Tailored for spaces up to 1,050 cubic feet (CF), this all-inclusive package features a powerful 15.0kW heater, ensuring consistent and efficient heating that creates the perfect environment for relaxation and rejuvenation.
Central to this package is the state-of-the-art UKU control system, which provides effortless management of your sauna’s temperature and settings, allowing you to fine-tune your experience with precision. The UKU Extension box further enhances your control capabilities, offering additional flexibility and convenience to customize your sauna sessions. Complementing the heater are quality sauna stones, carefully selected for their ability to produce long-lasting and steady steam. These stones help maintain the ideal balance of heat and humidity, ensuring each sauna session is both soothing and invigorating.
Expertly crafted in Estonia, a country renowned for its rich sauna tradition, the HUUM HIVE 15STUX package embodies the authentic European sauna experience. The precision engineering and meticulous attention to detail not only guarantee exceptional performance but also add a touch of sophistication to your sauna space. Whether you are a seasoned sauna enthusiast or exploring sauna bathing for the first time, this package combines modern technology with timeless craftsmanship, elevating your sauna experience to a new level of comfort.
Features

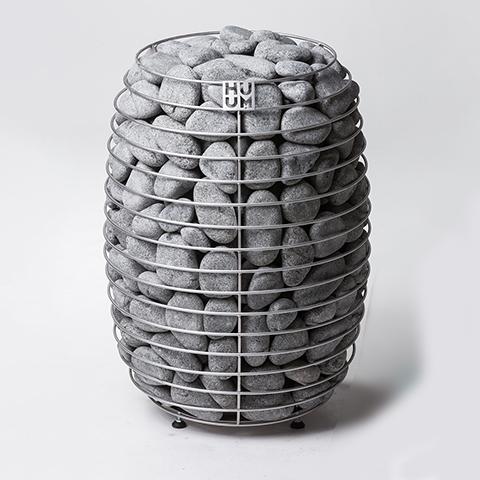

Hive Series 15.0kW Sauna Heater
- Elegant design
- Suitable for commercial use
- 240V/1PH operation
- For sauna rooms from 530 to 1060 cu. ft.
- Works with UKU controls
- Works with UKU extension box
- Large 552-pound stone capacity or 463lbs with use of HIVE air tunnel
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 22" Diameter (560mm) x 29.5" H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)

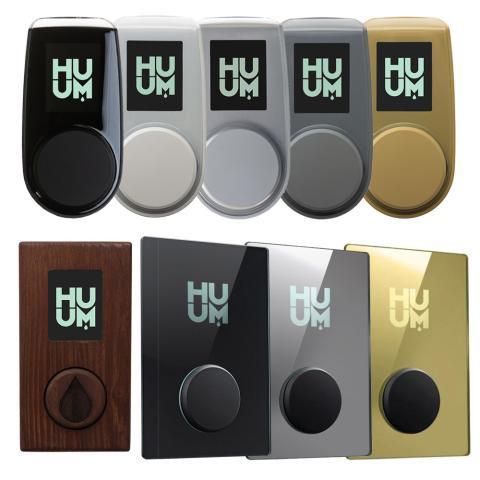

UKU
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance

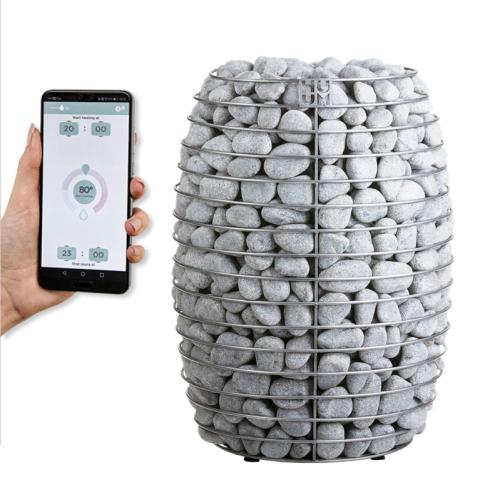

- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
- Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
HIVE Series 15.0kW Sauna Heater
- 15.0kW Sauna heater
- Adjustable legs
- Installation and operation manual
- Limited 5-year warranty (excluding elements)
UKU
- Black Control console
- Main control module
- Temperature sensor
- Door sensor
- Control display panel cable
- Temperature sensor cable
- Door sensor cable
- Installation and operation manual
- 5-Year limited warranty
Extension Box
- For use with UKU controls
- For heaters over 11kW
- Dimensions: 7"W (178mm) x 6"D (152mm)7"H (178mm)
Stones 24
- 552 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones
Specifications
- Model: HIVE 15STUX Pkg
- Model: HIVE 15
- Kilowatt Rating: 15KW
- Minimum Cubic Feet: 530 CF
- Maximum Cubic Feet: 1060 CF
- Heater Weight: 46.3 lbs
- Shipping Weight with Sauna Stones: 607.3 lbs
- 240V, Single Phase Amperage: 62.5 Amps
- Circuit Breaker: 50 + 50
- Wire Size AWG: 8 + 8
- Diameter: 22" (560mm)
- Height: 29.5" (750mm)
UKU
- Minimum Temperature Setting: 104 F
- Maximum Temperature Setting: 230 F
- Shipping Weight: 20 lbs
-
Console Dimensions
- Width: 2.2" (55mm)
- Depth: 0.9" (22mm)
- Height: 4.1" (105mm)
-
Main Module Dimensions
- Width: 3.5" (90mm)
- Depth: 2.3" (58mm)
- Height: 5.6" (142mm)
-
Display Panel Cable
- Length: 9.8 ft
- AWG: 22
-
Temp Sensor Cable
- Length: 16.4 ft
- AWG: 24
-
Door Sensor Cable
- Length: 16.4 ft
- AWG: 24
Technical
HIVE Installation and Operation Manual
HUUM Hive Sauna Heater IOM.pdf
HIVE Specs.pdf
